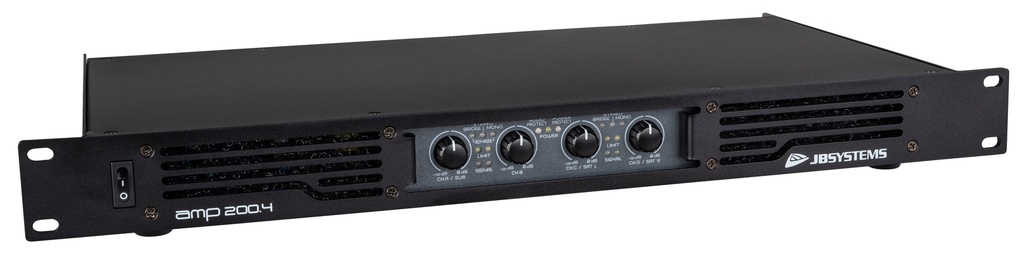

JB SYSTEMS - AMP200.4 - Professional 4-channel power amplifier in an extremely compact 19" 1U-housing
- Professional 4-channel power amplifier in an extremely compact 19" 1U-housing (H: 44mm)
- The unit houses 2 separate class-D amplifiers that can be configured independently to obtain the following combinations:
- Both amps in stereo mode: 4x 200Wrms @ 4Ω (4x 100Wrms @ 8Ω)
- Both amps in mono mode: 4x 200Wrms @ 4Ω (4x 100Wrms @ 8Ω)
- Both amps in Bridge mode: 2x 400Wrms @ 8Ω
- 3 Channel mode (2 sattelites + sub): 2x 200Wrms @ 4Ω (or 2x 100Wrms @ 8Ω) + 1x 400Wrms @ 8Ω
- 120Hz High Pass Filter on/off switch for satellite speakers
- 120Hz Low Pass Filter on/off switch for subwoofer
- DC fault + high temperature + overload and short circuit protections

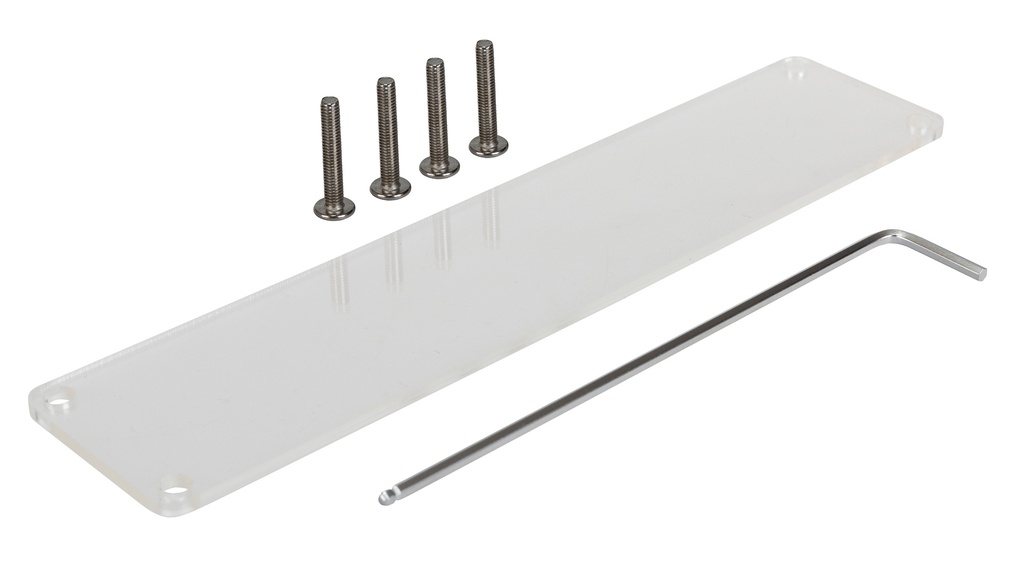

- A plastic cover (included) can be installed to prevent access to the level knobs

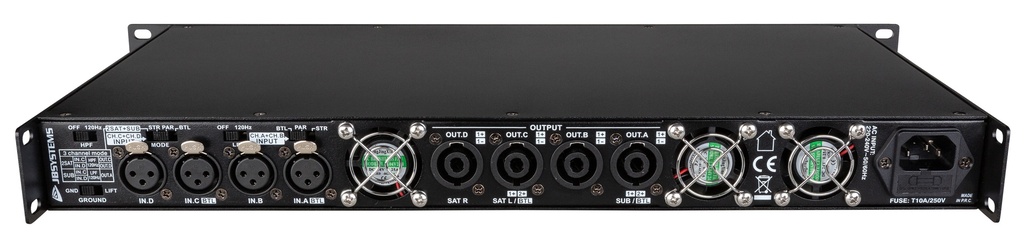

- Balanced XLR inputs
- Speakon® compatible outputs
