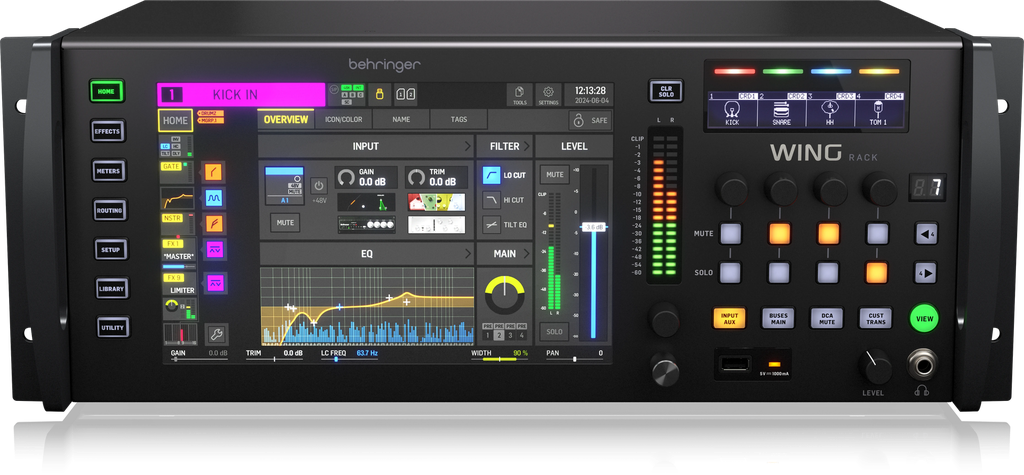

The WING Rack packs the full WING mixing engine into a compact 19-inch chassis. With no physical faders, it suits remote operation from a tablet or laptop, or serves as a second desk for monitors and broadcast.
Key features and typical uses
- 48 channels and 28 buses with full stereo architecture
- 24 Midas PRO mic preamps and 8 analog outputs on board
- Large adjustable touchscreen for direct control
- Up to 144 inputs/outputs over 3 AES50 ports
- Extra stereo outputs with headphone amplifier for in-ear monitoring
- Suited to monitor mixes, live events, conferences and fixed installs
| Channels | 48 |
|---|---|
| Buses | 28 |
| Mic preamps | 24 Midas PRO |
| Outputs (analog) | 8 |
| AES50 ports | 3 (up to 144 I/O) |
| Display | 10.1" multi-touch |
| Dimensions (W x H x D) | 48.6 x 18.3 x 32.6 cm |
| Weight | 9.4 kg |
