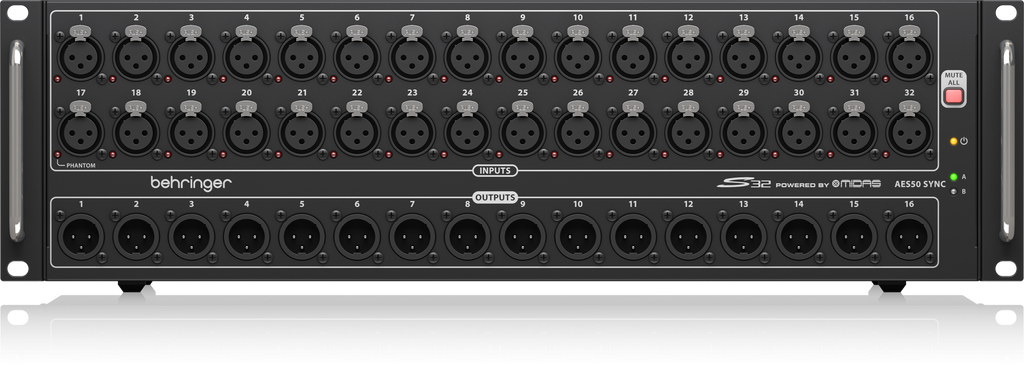

The S32 is a 19-inch stage box you place close to the sources on stage. Microphones and instruments plug in locally and travel digitally to the console, so there is no need for a heavy multicore.
Key features and typical uses
- 32 remote-controllable Midas mic preamps
- 16 balanced XLR outputs
- AES50 networking with Klark Teknik SuperMAC
- 24-bit conversion at 44.1 or 48 kHz
- Very low network latency of about 1.1 ms
- Suited to bands, conferences, theatre and larger corporate events
- Works with compatible AES50 consoles such as the WING series or X32
| Mic inputs | 32 (Midas preamps, remote controlled) |
|---|---|
| Outputs | 16 balanced XLR |
| Network | AES50 (Klark Teknik SuperMAC) |
| Conversion | 24-bit, 44.1/48 kHz |
| Dynamic range | 114 dB |
| Network latency | approx. 1.1 ms |
| Power consumption | 55 W |
| Dimensions (W x H x D) | 48.3 x 13.7 x 24.1 cm |
| Weight | 5.6 kg |
